Utility Series
UNITY Model C
Containerized Energy Storage — 20ft
Up to 6.25 MWhCapacity
Up to 2.5 MWPower
20ft ContainerForm
C4 RatedCorrosion
“Built for India's fast-growing utility-scale solar and hybrid projects — delivering high-density, 5 MWh storage in a single containerized unit. Plug-and-operate design minimizes civil work for faster commissioning.”
Technical Specifications
VariantsC-5.00 MWh / C-6.25 MWh
Nominal Capacity5,015.96 / 6,251.3 kWh
Nominal Voltage1331.2V
Voltage Range1164.8~1497.6V / 1123.2~1497.6V
CellLFP 3.2V / 314Ah / LFP 3.2V / 587Ah
Cluster Config1P 416S*12 / 1P 416S*8
Nominal Power2,507.9 / 3,125.6 kW (@0.5CP)
Auxiliary Power400V AC, 50/60 Hz
Operating Temp-30°C to 50°C / -30°C to 55°C
Altitude≤3000m
Soc Accuracy≤3% (after balancing)
Relative Humidity≤100% RH (non condensing)
RatingContainer: IP55, Module: IP67
CoolingLiquid Cooling
Noise≤75dB (A), Standard; ≤65dB (A), Silencer Assembly (Optional)
Weight42 / 49 tons
Corrosion GradeC4
Fire SuppressionSmoke & heat detectors, FACP, ventilation, dry pipes with sprinklers, aerosol
CommunicationCAN / Modbus 485 / TCP; CAN recommended
Dimensions6058 x 2436 x 2896 mm
CertificationIEC62619, UL1973, UL9540A (Cell/Pack/Rack/System level)
Key Features
Configurable as 5 MWh and 6.25 MWh in the same 20-ft form factor
Highly configurable inverter designed for 2hr / 4hr discharge rates
Rated for C4 corrosion resistance — functions reliably up to 95% humidity
AI-enabled EMS for instantaneous switching between power sources

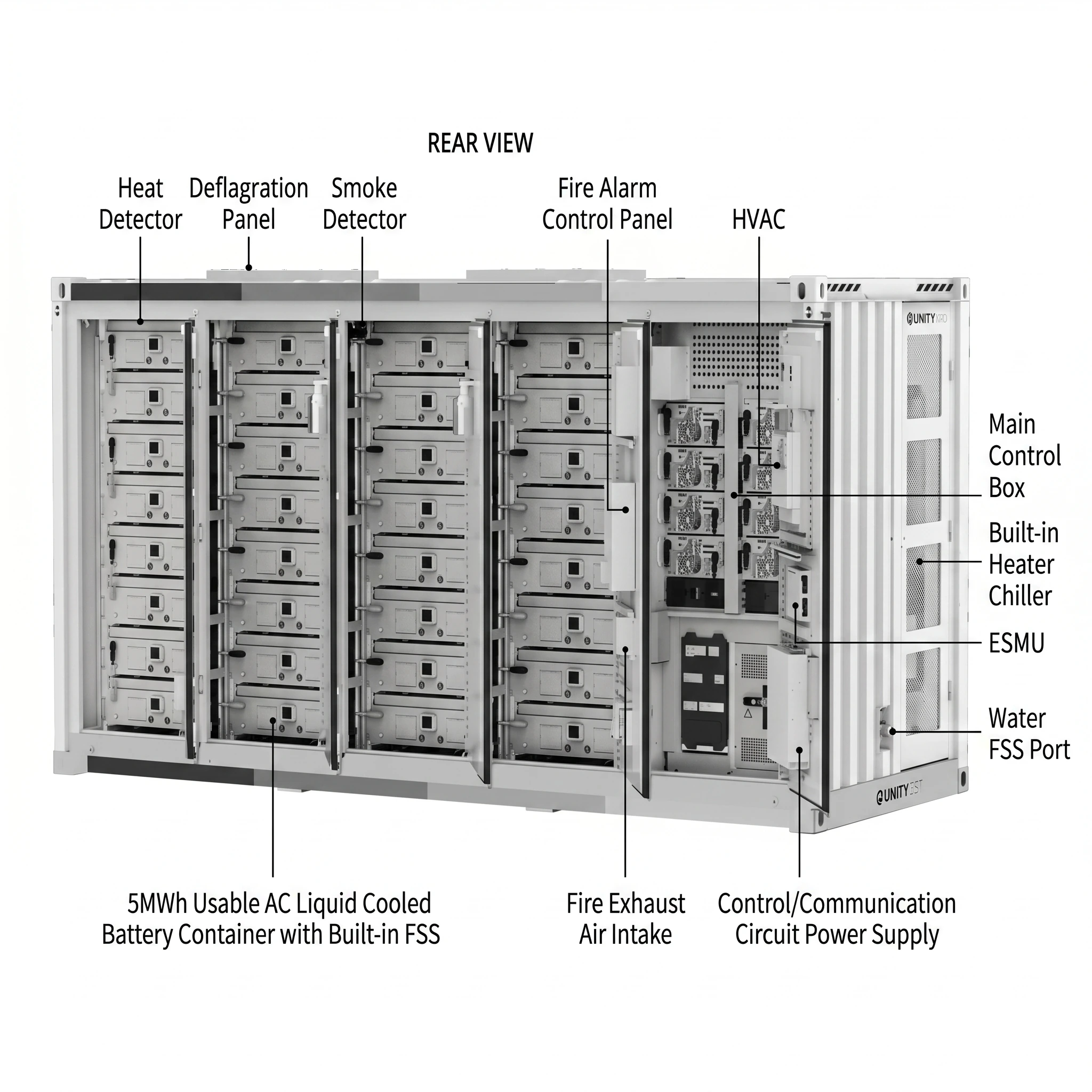

Advanced thermal management with multi-layer safety architecture
Fully integrated PCS-BMS-EMS architecture for ramp-rate control and frequency response
Plug-and-operate design — minimizes civil work and installation time
Applications
Where the UNITY Model C delivers unstoppable performance
Utility-scale solar & hybrid projects
Engineered for maximum performance and unwavering reliability.
