Commercial Series
UNITY Model A
All-in-One BESS — UESS-261
261 kWhCapacity
125 kWPower
8,000Cycles
>94%RTE
“Power your operations with a BESS built for India's toughest industrial conditions. Delivers clean, reliable, and uninterrupted power — reducing diesel usage, cutting energy bills, and stabilizing your plant during peak loads.”
Technical Specifications
Rated Capacity233 / 261 kWh
Ac Rated Power105 / 125 kW
Rated Grid Voltage400V
Voltage Range A C360~440V
Nominal Battery Voltage832V
Voltage Range D C728~936V
CellLFP
Series Of Battery1P*52*5S
Pack ProtectionIP66
System Efficiency>86%
Operating Temp-25~60°C (Derating above 45°C)
Operating Humidity0%-95% R.H
RatingIP66
Corrosion GradeC3-M (Standard) / C4 / C5
Fire FightingPack-level aerosol + Cabin level aerosol + Water firefighting (optional)
CoolingLiquid Cooling
CommunicationRS485 / CAN 2.0 / Ethernet / Dry Contact
Noise≤76dB @ 1m
Dimensions1100 x 1320 x 2560 mm
Weight2,600 kg
Ac ProtectionCircuit breaker + AC lightning protection
CertificationGB/T 36276, UN38.3, IEC62619, IEC62477, IEC61000
Key Features

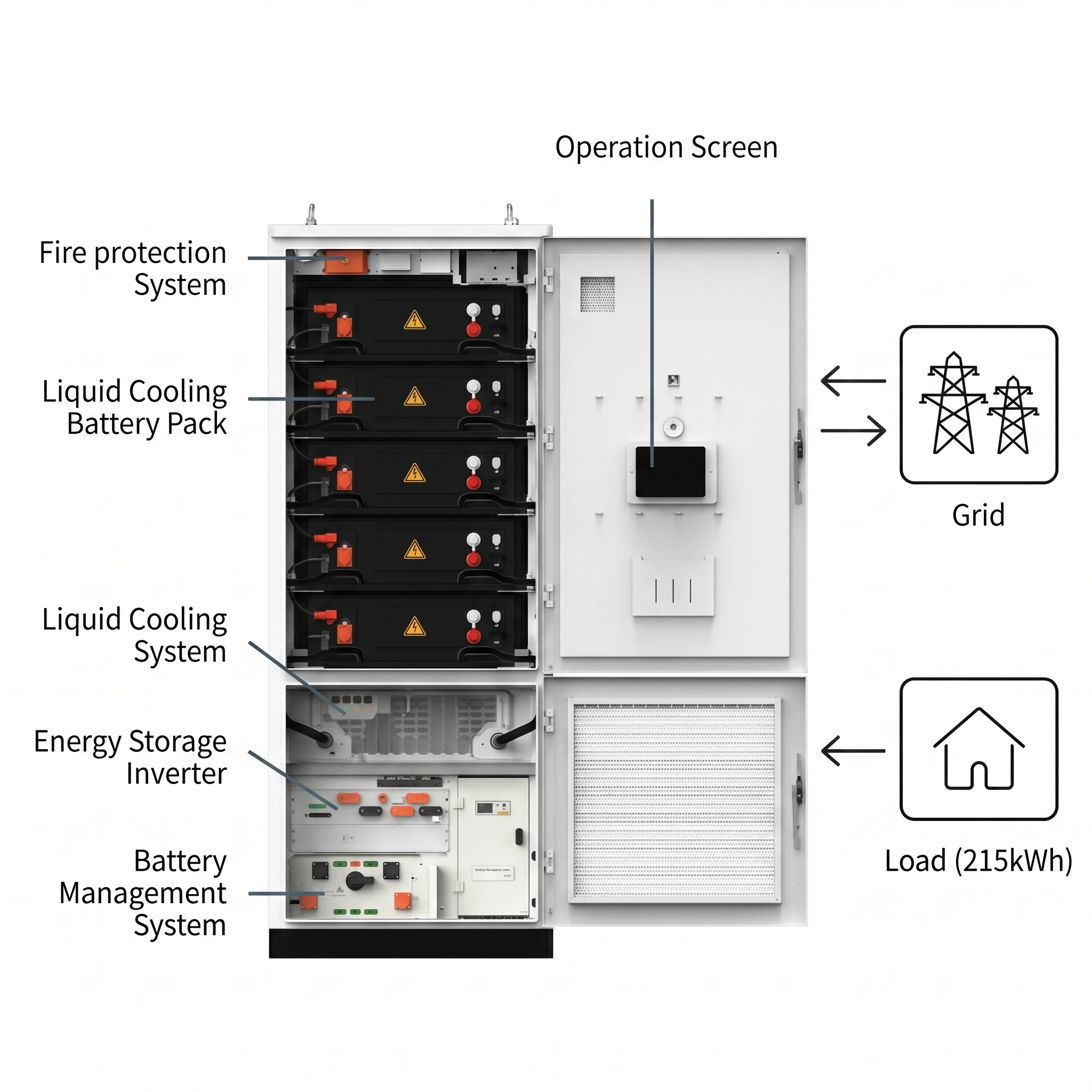

LFP cells form modules, modules combine into clusters for scalable, reliable capacity growth
Bidirectional PCS enables DC-AC and AC-DC charging, discharging and grid support
Liquid cooling (HVAC) maintains optimal temperatures, maximizing efficiency and lifespan
Three-tier BMS prevents overcharge and balances cells for safety and reliability
Corrosion-proof enclosure, rated IP54 for dust and water protection
AI-enabled EMS monitors operations, controls strategies, and reports real-time analytics
Applications
Where the UNITY Model A delivers unstoppable performance
Factories & warehouses
Eliminate downtime with industrial-grade power that never stops delivering.
Explore More Systems
Find the right solution for your needs
Interested in the UNITY Model A?
Get in touch for specialized pricing, technical consultation, and custom configuration options.
